Art. 114
MINI MOD. TABLE 12-rib UV-stabilized HD PE.
Diam. mm 305x55 h - weight 0.49 kg
Colors: WHITE - YELLOW - ORANGE - GREEN - BLUE - BEIGE
On request: RED
Art. 112
DUNA MODEL COFFEE TABLE 12-rib UV-stabilized HD PE.
Diam. mm 400x65 h - weight 0.61 kg
Colors: WHITE - YELLOW - ORANGE - GREEN - BLUE - BEIGE
On request: RED
Art. 016
COFFEE TABLE MOD. SEI 12-rib heavy UV-stabilized HD PE.
Diam. mm 410x150 h - weight 1.15 kg
Colors: WHITE - YELLOW - ORANGE - GREEN - BLUE - BEIGE
On request: RED
Art. 01G
SHELL MODEL COFFEE TABLE Made of UV-stabilized PP Copo, it consists of two interlocking, replaceable parts; the lower section is reinforced with six ribs that also provide a secure support for the upper section. It features two bag hooks and a provision for inserting a locking screw into the support tube.
Diameter mm 400x85 h
Weight 0.90 kg
Available on request without bag hooks.
Colors: WHITE - YELLOW - BEIGE - ORANGE - GREEN - BLUE
On request: RED
Art. 01SUP
SUPERGUSCIO COFFEE TABLE Made of UV-stabilized PP Copo, it is made up of two interlocking, replaceable parts; the lower part, reinforced by twelve ribs which also provide a valid support for the upper part, has a hole for the tube shaped to allow it to be mounted on both 85 mm diameter round tubes and 80x80 mm square tubes.
Diameter mm 435x100 h
Weight 1.74 kg
Colors: WHITE - BEIGE - YELLOW - ORANGE - GREEN - BLUE
On request: RED
Example of umbrella support table
Example of umbrella support table complete with tube, plate, reducer and anti-slip anchoring ring (optional).
In the picture: umbrella stand table mod. SEI
Assembly instructions
Components of an umbrella stand table:
1 - Table for umbrella stand
2 - Coupling reducer (with various sized couplings)
3 - Umbrella holder tube
Insert reducer 2 into tube 3.
Insert tube 3 into the ground for approximately 50 cm (or onto any support).
Fit the table 1 onto the support tube 3, pressing it down firmly until it stops.

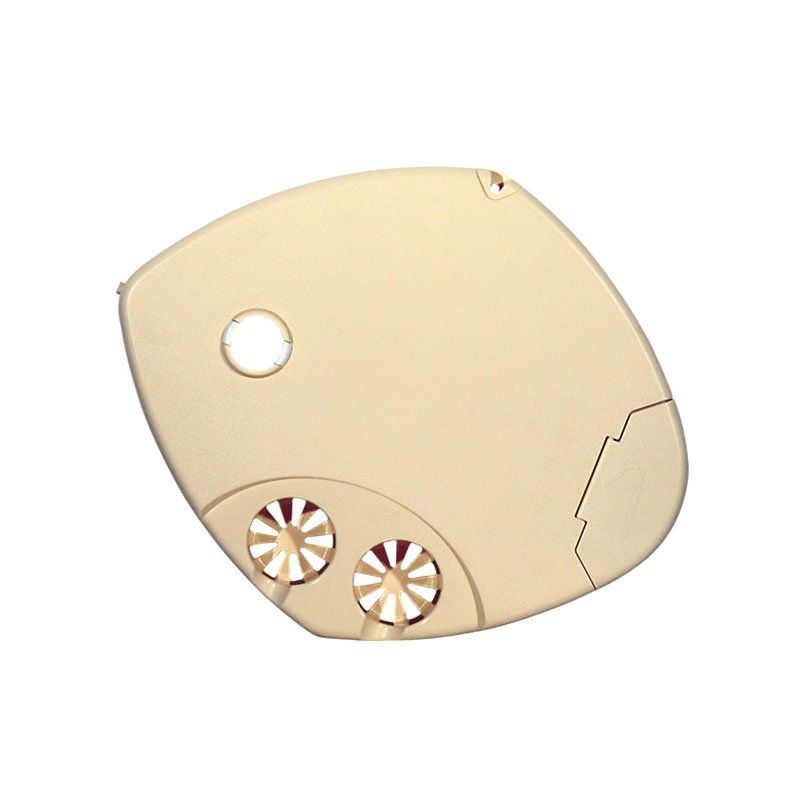

Art. 122
MULTIFUNCTIONAL STORAGE TABLE, MODEL LIDO BOX in PP UV-stabilized body, with storage compartment, ashtray, cup holder, bag hook and counter (optional).
Rotation bushing in acetal resin.
The rotating storage compartment allows for use without having to remove items from the shelf. Furthermore, the storage compartment can be removed or installed at any time.
Dimensions mm 480x400x135 h. - Weight Kg 1.86
Standard upper colors: WHITE - YELLOW - ORANGE - RED - GREEN - BLUE
On request: LIGHT BLUE - AQUA MARINE BLUE - BORDEAUX RED - BROWN
Storage compartment colors: WHITE - BEIGE
DETAILS
Original and attractive design, great versatility and ease of use.
Quality materials and a carefully designed and tested structure guarantee sturdiness and durability. The practical rotating storage compartment, lockable with a padlock (optional) or, upon request, with a corrosion-resistant lock and dust cover (optional), allows for convenient and independent use of the shelf and is easy to clean.
Thanks to its special housing, it can be mounted on both 85 mm diameter round tubes and 80x80 mm square tubes, and with the optional support art. 40, it can also be mounted on 38 - 40 - 42 mm poles.
Art. 120
MULTIFUNCTIONAL TABLE MODEL LIDO: It has the same features as the LIDO BOX model, but without the storage compartment, which can also be easily installed after the sale.
Wide range of standard colors: WHITE - YELLOW - ORANGE - RED - GREEN - BLUE.
Colors on request: LIGHT BLUE - AQUA MARINE BLUE - BORDEAUX RED - BROWN
Components and Spare Parts
8 - Art. 1226 Storage compartment. Colors: WHITE - BEIGE
9 - Art. 1227 Rotation bushing in acetal resin
10 - Art. 1228 Ashtray lid
11 - Art. 24VIN Ashtray tray
12 - Art. 1229 Coffee table shelf
13 - Art. 1230 Bag hanger hook and stainless steel screws for bag hanger hook
Coffee Table Colors
LIDO and LIDO BOX MODELS
Wide range of standard colors:
WHITE - BEIGE - YELLOW - ORANGE - RED - GREEN - BLUE
Colors on request:
LIGHT BLUE - AQUA MARINE LIGHT BLUE - BORDEAUX RED - BROWN
Art. 118 - Art. 119
MULTIFUNCTIONAL STORAGE TABLE, MULTIPURPOSE MODEL, in PP UV stabilized, with lockable storage compartment (optional), ashtray, cup holders, bottles, cans.
Diam. mm 400x135 h. - Weight 1.74 kg
Compartment colors: CREAM - BEIGE
Lid colors: CREAM - BEIGE - YELLOW - ORANGE - RED - LIGHT BLUE - BORDEAUX RED - BROWN
Art. 119 Cup holder extension (optional on request)
Colors: CREAM - BEIGE
Art. 40
Adapter support: allows the use of all tables used on 85 mm diameter tubes on umbrella poles with a diameter of 40 mm (38 - 42 on request).
Stainless steel Allen key.
Color: WHITE
Material: NYLON
Art. 01AN - Art. 03AN
Art. 01AN Anti-slip anchor ring for PE pipe diam. 85 mm.
Size Diam. mm 175x50 h.
Color: BLACK
Art. 03AN Dual-purpose anti-slip anchor ring for both round PE pipe diam. 85 mm and square PVC pipe 80x80 mm
Size: Diam. mm 175x50 h.
Color: BLACK
Art. 01T - Art. 02T
UMBRELLA HOLDER TUBES
Art. 01TUV stabilized round HD PE pipe.
Measurement: Diam. mm 85x1200 h. - sp. mm 6
Color: WHITE
Art. 02TUV stabilized square shockproof PVC tube,
Measurement: mm 80x80x1200 h. - sp. 3.5 mm
Color: WHITE
Umbrella/tube coupling reducers
The coupling reducers, patented by us in 1982, have revolutionized the use of professional beach umbrellas; the classic reducers for 85 mm tubes have recently been joined by the new Monolit models, produced entirely in nylon in a single piece.with internal metal reinforcement insert, both round and square; the bayonet versions have a second vertical windproof groove, diametrically opposite the first, making accidental removal of the umbrella virtually impossible. Furthermore, to complete the range, square reducers are available in nylon with a brass connection, diam. 35.5 mm and diam. 37.5 mm, or in aluminum with a bayonet connection, diam. 36.5 mm.
Art. 02R
MONOLIT: COUPLING REDUCER
Nylon reducer with metal reinforcement insert, 35.5 - 36.5 mm bayonet and 37.5 mm bayonet diam. couplings (bayonets with double vertical windproof groove).

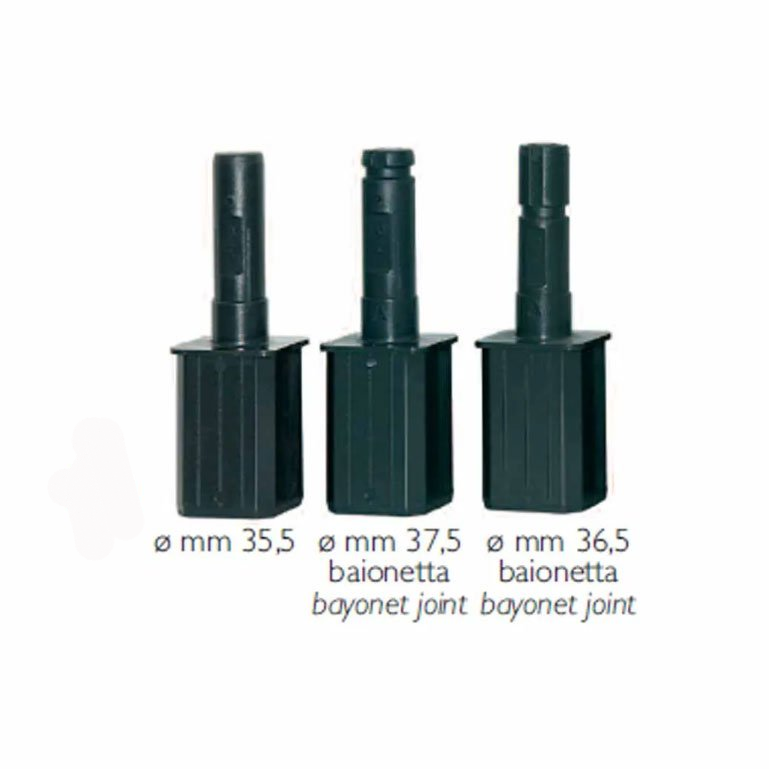

Art. 02RQ
MONOLIT: SQUARE COUPLING REDUCER
Square nylon reducer with metal reinforcement insert, with 35.5 - 37.5 mm bayonet and 36.5 mm bayonet diam. couplings (bayonets with double vertical windproof groove).
Art. 03RQ
Art. 03RQ Square nylon coupling reducer, with brass coupling diam. 35.5 mm and diam. 37.5 mm
Art. 03RQB Square nylon coupling reducer, with aluminum bayonet coupling diam. 36.5 mm
Art. 01R n. 1 - 6 - 8 - 9
Coupling reducers with metal insert in various sizes
n. 1 with wood/aluminium graft diam. 33.5 mm
No. 6 with brass fitting, diameter 37.5 mm
No. 8 with brass fitting, diameter mm. 36 female
No. 9 with brass fitting, diameter 35.5 mm
Art. 01RP n. 3 - 4 - 5
Coupling reducers with PVC coupling in various sizes:
n. 3 diam. mm. 33,5
n. 4 diam. mm. 35,5
n. 5 diam. mm. 37,5
Art. 01RB n. 2 - 7
Coupling reducers with bayonet metal coupling:
n. 2 with bayonet aluminum fitting diam. mm. 36.5
No. 7 with brass bayonet fitting, diam. 37.5 mm
Call Lietomare now for a quote!
