FENCE COMPONENTS
Art. 01AN - Art. 913 Art. 915 - Art. 918
Art. 01AN - Black PP anchor ring for 85 mm diameter tube, item 918.
Art. 913 - Two-tone polypropylene rope stabilized against UV rays, diam. 22 mm.
Colors: WHITE/ORANGE WHITE/LIGHT BLUE - WHITE/YELLOW - WHITE/GREEN - WHITE/RED
Art. 915 - UV-stabilized PP cap.
Colors: WHITE - ORANGE - BEIGE-YELLOW - GREEN - LIGHT BLUE - RED
Art. 918 - White HD PE tube diam. 8.5 cm x 150 h with two coaxial holes diam. 24 mm for the passage of the rope.
Art. 03AN
Art. 03AN - photo 3
Dual-purpose anchoring ring for both 85mm diameter round PE pipe and 80x80mm square PVC pipe.
Diam. mm 175x50 h.
Color: BLACK
Art. 1003
Art. 1003 - photo 5
Square PVC cap for 80x80 mm pipe.
Color: WHITE
Art. 914 - Art. 916
Art. 914 - Nylon rope stopper ring with stainless steel screw and nut.
Colors: WHITE - YELLOW - BLUE - RED - GREEN - ORANGE
Art. 916 - Nylon cap to close the tube hole.
Colors: WHITE - YELLOW - BLUE - RED - GREEN - ORANGE
Example of a round tube fence
EXAMPLE OF COMPLETE FENCE art. 912 MADE UP OF:
tubes diam. cm 8.5x150 h art. 918
cap art. 915
cord stopper ring art. 914
anchor ring (not visible in the photo) art. 01AN
two-tone polypropylene rope art. 913
Example of a fence with square tube
EXAMPLE OF A COMPLETE FENCE MADE UP OF:
white shockproof PVC pipes mm 80x80x1000 h
white PVC cap art. 1003
cord stopper ring art. 914
two-tone polypropylene rope art. 913
concrete support base art. 924.
NB for use on sand the tubes are 150 cm high (item 1002) with anchoring ring item 03AN
SHOCKPROOF PVC FENCE
Thanks to the modular structure in shock-resistant, UV-stabilized PVC, made up of generously sized, reinforced and thickened elements (slats), with nylon ends and stainless steel hardware, our fence is a particularly robust, long-lasting and practically maintenance-free high-quality item.
In addition to the standard model, we can make various models upon request, all with great versatility of use, easy assembly (and disassembly), through the use of just two screws (patented system), on each vertical slat, to firmly connect all the components of the panel (module) measuring 2 x 1 m h (other sizes on request).
Panel support tubes in shock-resistant, UV-stabilised PVC, 80x80 mm, 3.5 mm thick, in the following heights:
- h 180 cm (other sizes on request), for installation on sand and soft ground: by varying the depth of insertion into the ground (approximately 50/80 cm), the distance of the panels from the ground is adjusted;
- h cm 120 (other sizes on request), for installation on solid surfaces, supported if necessary by our specially made concrete bases diam. cm 45.5x6 h, weight 14 kg (art. 924).
Extremely easy to install (on any slope) and remove, thanks to the quick-attachment system that attaches the panels to the support tubes; simply tighten two screws to make it permanently fixed.
Convenient to store, it can be folded flat to save space. Note: The fence is supplied disassembled, complete with assembly instructions.
Colors:
Structure: WHITE
Horizontal caps: WHITE
Vertical caps: WHITE - BEIGE - YELLOW - ORANGE - RED - GREEN - LIGHT BLUE - BLUE - BROWN
A - Art. 922 Support upright h 180 cm
B - Art. 03AN Anchor ring (optional)
C - Art. 921 Liner 1/8 fence module with 8 vertical slats
D - Art. 923 Support upright h 120 cm
A - Art. 921 Liner 1/8 fence module with 8 vertical slats
B - Art. 920 Liner 1/7 fence module with 7 vertical slats
C - Stainless steel quick coupling system
The Liner 1 and Liner 3 models have the initial slats adjacent to the support uprights; the Liner 1 model has pointed ends, and the Liner 3 model has flat ends.
The Liner 2 and Liner 4 models have the initial slats not adjacent to the support uprights; the Liner 2 model has pointed ends, and the Liner 4 model has flat ends.
Liner 1/7 fence with 7 vertical slats Art. 920
Liner 1/8 fence with 8 vertical slats Art. 921
Art. 924
Washed gravel support base, diam. 41.5x6 cm h. - weight 14 kg, with our insert Art. 03ANG.
Art. 03ANG
ABS anchor ring grey color to be incorporated into the concrete to create stable supports for the uprights of our PVC fences and picket fences.
Diam. mm. 175x50 h.
Staccionata in PVC mod. Liner 1/8 Art. 921 montata su ns. basi Art. 924 con montanti h. cm. 120 Art. 923
Fence folded like an accordion to take up less space during storage.
Our fence can be mounted on any slope.
Art. 943
Liner 3/8 model fence with 8 vertical slats, 90.5 cm high, with flat caps and initial slats adjacent to the support posts.

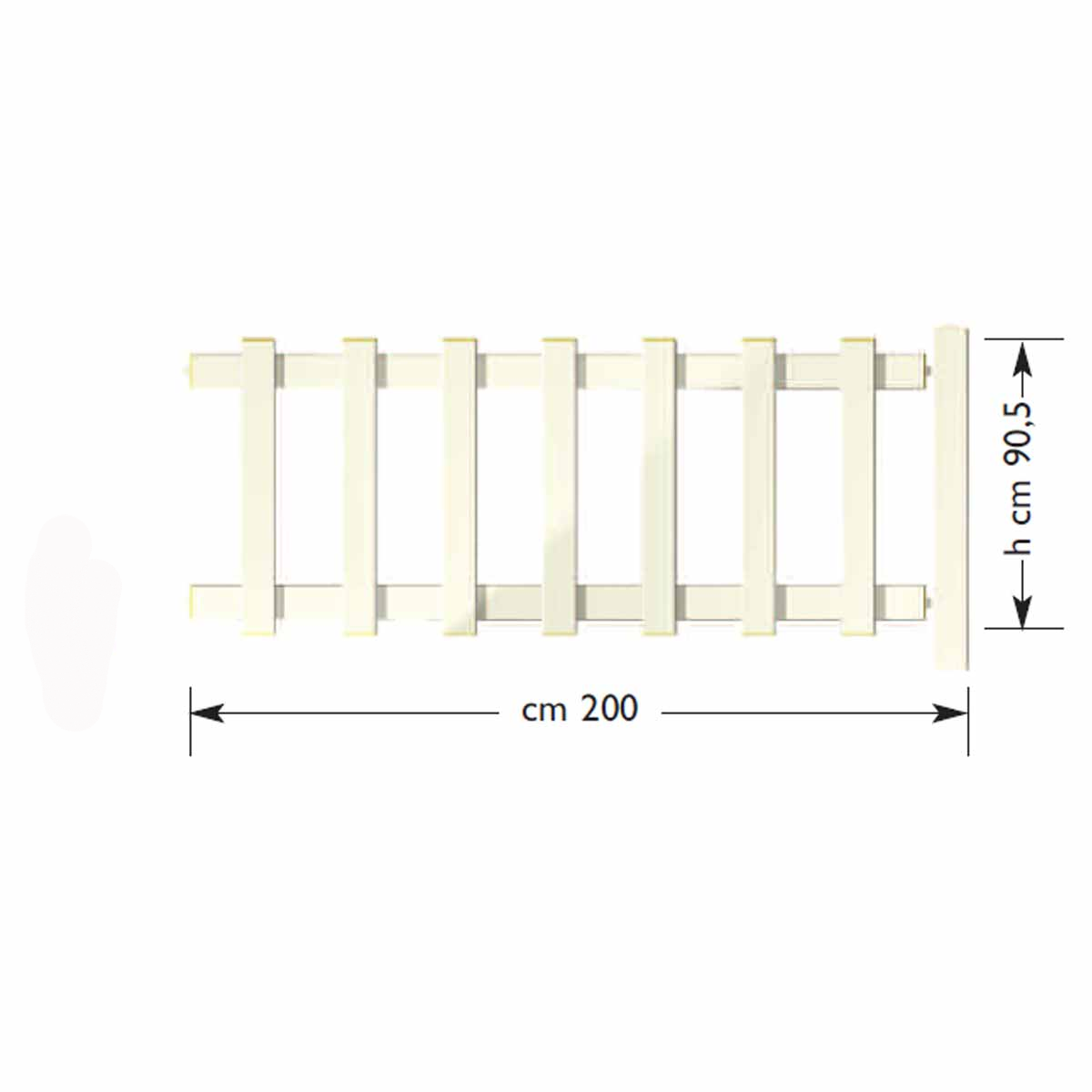

Art. 952
Liner 4/7 model fence with 7 vertical slats, 90.5 cm high, with flat caps and initial slats not adjacent to the support uprights.
Model LINER 1
Standard composition:
8 vertical elements 95x26 height (A) = 1005 mm;
2 horizontal elements 95x34 length (L) = 2000 mm
Vertical (S) and (I) dimensions with 4 adjustments on request.
Model LINER 2
Standard composition:
8 vertical elements 95x26 height (A) = 1005 mm;
2 horizontal elements 95x34 length (L) = 2000 mm
Vertical (S) and (I) dimensions with 4 adjustments on request.
Composition on request:
number of vertical elements variable from 5 to 10, with height (A) between 805 mm and 1305 mm, with a pitch of 50 mm. Variable dimensions (S) and (I) with 4 adjustments on request.
NOTE: in the Liner 2 (and Liner 4) model with initial slats not adjacent to the support uprights, the distance D (with the same number of vertical elements) is smaller than in the Liner 1 model.
Call Lietomare now for a quote!
